Oslo-class

Summary

Origin country 🇳🇴 Norway
Category Frigate
SubtypeFrigate
ManufacturerNavy Main Yard, Karljohansvern
Year commissioned1966
UnitsOslo, Bergen, Trondheim, Stavanger, Narvik

Operators

🇳🇴 Norway

Description

The Oslo-class frigate was developed for the Royal Norwegian Navy as part of a 1960 government rebuilding program. The design was based on the United States Navy Dealey-class destroyer escort. All five vessels in the class were constructed at the Navy Main Yard in Horten, Norway, between 1964 and 1966. The United States provided half of the project funding through the Mutual Defense Assistance Program.

The class featured a modified forward hull with a higher freeboard to accommodate sea conditions in Norwegian waters. While the basic design originated in the United States, several sub-systems were European-built. The vessels underwent multiple modernization programs. During the late 1970s, the ships were fitted with Penguin anti-ship missiles, Sea Sparrow surface-to-air missiles, and Mark 32 torpedo launchers. A second modernization followed in the 1980s. Between 1995 and 1996, the hulls were strengthened, which resulted in an increase in displacement.

The class consisted of five vessels: Oslo, Bergen, Trondheim, Stavanger, and Narvik. These ships entered service between 1966 and 1967, succeeding the River class. They remained in operation until the mid-2000s, when they were replaced by the Fridtjof Nansen class.

The lead ship, HNoMS Oslo, ran aground in January 1994 and sank the following day during a towing operation. HNoMS Stavanger was decommissioned in 1998 and sunk as a target by a submarine-launched torpedo in 2001. HNoMS Bergen was decommissioned in 2005 and used as a target for a bomb test in 2025. HNoMS Trondheim ran aground in 2006; after decommissioning, it served as a target for a Naval Strike Missile test in 2013 and was sunk in 2025. HNoMS Narvik, the final active ship of the class, was decommissioned in 2007 and is preserved as a museum ship at the Royal Norwegian Navy Museum in Horten.

Technical specifications

Displacement2134 tons
Range 3900 km at 15 knots
Crew120 members
Width11.2 m (36.7 ft)
Length96.6 m (316.9 ft)
Propulsion

Twin steam boilers, one high pressure and one low pressure steam turbine, 20,000 hp (14,914 kW)

Thrust1100 hp
Armament
  • 2 × 3 in (76 mm) cannon
  • 1 × Bofors 40mm/70 anti-aircraft gun
  • 2 × 20 mm Rheinmetall anti-aircraft guns
  • 2 × 12.7 mm anti-aircraft guns
  • 6 × Penguin SSMs
  • 1 × 8-cell Raytheon RIM-7M Sea Sparrow Mk 29 SAM system
  • 6 × Kongsberg Terne ASW rocket-thrown depth charges
  • 2 × triple 324 mm (12.8 in) Mark 32 torpedo tubes (Sting Ray torpedoes)
Maximum speed25 knots

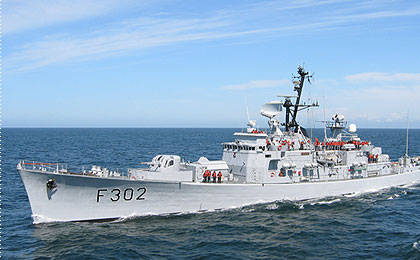

Photo of Oslo-class

Frequently Asked Questions

What type of ship is the Oslo-class?
The Oslo-class is a frigate (Frigate) built by Norway.
What is the displacement of the Oslo-class?
The Oslo-class has a displacement of 2,134 tons.
What is the maximum speed of the Oslo-class?
The Oslo-class has a maximum speed of 25 knots (46 km/h).
What is the range of the Oslo-class?
The Oslo-class has a range of 3,900 km (2,105 nautical miles) at 15 knots.
How many crew members serve on the Oslo-class?
The Oslo-class has a crew complement of 120 personnel.
How many Oslo-class ships have been built?
5 vessels of the Oslo-class have been built.
Which countries operate the Oslo-class?
The Oslo-class is operated by Norway.
