Submarine ·DCNS

Le Triomphant-class

French ballistic missile submarine, introduced in 1997, displaces 12,640 tons and carries nuclear missiles.

Origin country
🇫🇷 France
Commissioned
1997
Ships built
4
Approx. unit cost
$3100million

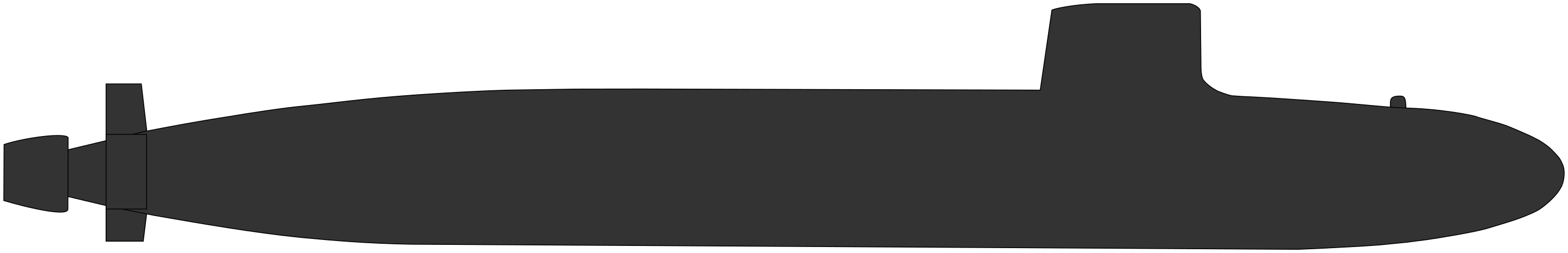

Le Triomphant-class submarine side profile silhouette
Side profile · Le Triomphant-class · length 138 m
Technical Specifications
SubtypeNuclear-powered ballistic missile submarine
Displacement12640 tons
Displacement submerged14335 tons
Crew111 members
Width12.5 m (41.0 ft)
Length138.0 m (452.8 ft)
Max. depth400 m (1312.3 ft)
Propulsion

K15 pressurized water reactor 150 MWth with turboreductor pump-to-shaft system of 30,5 MW; two emergency diesel-powered generators SEMT Pielstick 8PA4V200 SM (700 kW (940 hp)) auxiliaries

Performance
Range Unlimited, except by food supplies
Maximum speed15 knots
Max. speed submerged25 knots
Armament
Armament
  • 16 M45 or M51/51.3 missiles with six to ten TN 75 or TNO thermonuclear warheads
  • Four 533 mm (21 in) torpedo tubes for F17 torpedoes and Exocet SM39 anti-ship missiles
Operators
🇫🇷 France
Ships In Class
S616 TriomphantS617 TéméraireS618 VigilantS619 Terrible
Compare This Ship
Le Triomphant-class vs

Description

The Triomphant class, designated Sous-Marin Nucléaire Lanceur d’Engins de Nouvelle Génération (SNLE-NG), consists of four ballistic missile submarines operated by the French Navy. Developed by DCNS, the class succeeded the Redoutable class to provide the ocean-based component of the French nuclear deterrent, the Force océanique stratégique. Construction occurred between 1986 and 2010, with the lead boat entering service in 1997.

The propulsion system centers on a K15 pressurized water reactor and a turboreductor pump-to-shaft system. Electronic and sensor systems include DMUX 80, DUUX 5, and DSUV 61B sonar arrays, alongside a SET tactical operational system. Compared to the preceding class, these vessels feature reduced detectable noise and increased sonar sensitivity. The class is equipped with launch tubes for ballistic missiles and torpedo tubes for F17 torpedoes and Exocet SM39 anti-ship missiles. While the first three units originally carried M45 missiles, the class was designed for the M51 missile. All units were subsequently retrofitted to the M51 standard, and the M51.3 variant entered operational service in late 2025.

Based at Île Longue in Brittany, the French Navy maintains four active units: Le Triomphant, Le Téméraire, Le Vigilant, and Le Terrible. The operational cycle is intended to ensure two submarines are on patrol. In February 2009, Le Triomphant collided with the Royal Navy submarine HMS Vanguard while submerged. Le Triomphant sustained damage to its bow sonar dome but returned to its home port under its own power. The decommissioning of the final Redoutable-class vessel in 2008 left the Triomphant class as the sole ballistic missile submarine class in French service until the planned introduction of the SNLE 3G.

Frequently Asked Questions

What type of ship is the Le Triomphant-class?
The Le Triomphant-class is a submarine (Nuclear-powered ballistic missile submarine) built by France.
What is the displacement of the Le Triomphant-class?
The Le Triomphant-class has a displacement of 12,640 tons.
What is the maximum speed of the Le Triomphant-class?
The Le Triomphant-class has a maximum speed of 15 knots (27 km/h).
What is the range of the Le Triomphant-class?
The Le Triomphant-class has unlimited range as it is nuclear-powered. Its endurance is limited only by food supplies and crew requirements.
How many crew members serve on the Le Triomphant-class?
The Le Triomphant-class has a crew complement of 111 personnel.
How many Le Triomphant-class ships have been built?
4 vessels of the Le Triomphant-class have been built.
Which countries operate the Le Triomphant-class?
The Le Triomphant-class is operated by France.
How much does a Le Triomphant-class cost?
The Le Triomphant-class has an estimated unit cost of approximately $3100 million.
