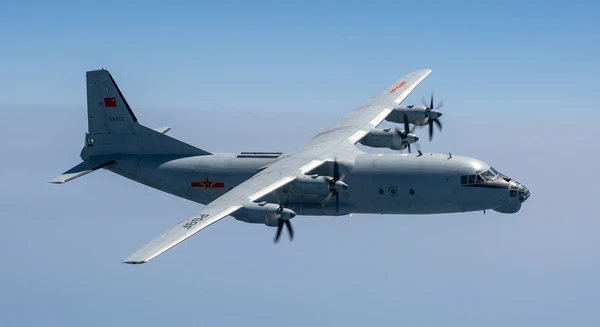

Y-9
Chinese medium utility and military transport aircraft, introduced in the early 21st century, used for tactical transport and specialized military operations. Key figures: top speed 660 km/h, range 2,200 km, service ceiling 10,400 m, max takeoff weight 65,000 kg. In service with 1 air force as of 2026 — China (26).
| Crew | 4 |
| Length | 36.1 m (118.3 ft) |
| Wingspan | 38 m (124.7 ft) |
| Height | 11.3 m (37.1 ft) |
| Wing area | 121.9 m² (1312.1 sqft) |
| Max. takeoff weight | 65,000 kg (143,300 lbs) |
| Powerplant | 4 × WoJiang WJ-6C 3,800 kW each |
| Maximum speed | 660 km/h (410 mph) |
| Operational range | 2,200 km (1,367 mi) |
| Endurance | 10 hours |
| Service ceiling | 10,400 m (34,121 ft) |
Description
The Shaanxi Y-9 is a medium utility and military transport aircraft produced by the Shaanxi Aircraft Company for the Chinese People's Liberation Army (PLA). It is a lengthened and upgraded development of the Shaanxi Y-8F. Development began around 2002 under the Y-8X program, a collaborative effort with Antonov intended to compete with the Lockheed Martin C-130J Super Hercules. Shaanxi adopted the Y-9 designation by September 2005, incorporating design features from the cancelled Y-8F600. Following design changes in 2006, the design was frozen in January 2010. The aircraft completed its first flight in November 2010.
Design
The Y-9 is powered by four WoJiang WJ-6C turboprop engines, each producing 3,800 kW, driving six-bladed JL-4 composite, constant-speed, fully-feathering, and reversible propellers. The aircraft has a cruise speed of 560 km/h, an endurance of approximately 10.5 hours, and a service ceiling of 10,400 m. It has a maximum takeoff weight of 65,000 kg and a fuel capacity of 23,000 kg. The cargo bay has an internal volume of 155 m³ and is equipped with cargo handling rollers, tie-down rings, and a rear entrance ramp. The Y-9 has a payload capacity of 20,000 kg, or it can carry 106 paratroopers or 72 medevac patients with three attendants. Its range is 2,200 km with a 15,000 kg payload, and its ferry range is 5,700 km.
Operational History
The Y-9 entered service with the People's Liberation Army Air Force (PLAAF) in 2012, and achieved full operating capability in December 2017. Chinese military operators include the PLAAF, which operates over 30 base Y-9 aircraft alongside specialized variants; the People's Liberation Army Navy Air Force (PLANAF); and the People's Liberation Army Ground Force Aviation. Export customers include Myanmar, which ordered one Y-9E in November 2017, and Namibia, which received two Y-9E aircraft in December 2024.
Variants
-
Y-9: The base military transport and utility variant.
-
Y-9E: The export variant of the Y-9, equipped with Pratt & Whitney Canada PW150B engines.
-
Y-9JZ (GX-8): An electronic intelligence variant.
-
Y-9W / KJ-500 (GX-10): An airborne early warning and control variant featuring a five-hour endurance and a lighter version of the KJ-2000 active electronically scanned array radar.
Identified in 70 sorties in the official China-Taiwan Tensions activity reports between 2020 and 2024 — a floor, not a census: only sorties the source identified by type are counted, and how much it disclosed varies by year.
Frequently Asked Questions
What type of aircraft is the Y-9?
What is the maximum speed of the Y-9?
What is the range of the Y-9?
When did the Y-9 first fly?
Which countries operate the Y-9?
What is the service ceiling of the Y-9?
