H125M / AS550 Fennec

Summary

Category Military Helicopters
Origin country 🇫🇷 France
ManufacturerAérospatiale
First flight27 June 1974
Year introduced1990
Number produced531 units
Average unit price$5 million

Technical specifications

Version: AS350 B3
Crew2 pilots
Operational range720 km (447 mi)
Maximum speed 260 km/h (162 mph)
Wingspan12.9 m (42.5 ft)
Height3.1 m (10.3 ft)
Length10.9 m (35.9 ft)
Service ceiling4,600 m (15,092 ft)
Empty weight1,174 kg (2,588 lbs)
Max. takeoff weight2,250 kg (4,960 lbs)
Climb rate8.5 m/s (27.9 ft/s)
Powerplant1 x turboprop Turbomeca Arriel 2B delivering 632 kW each

All operators

🇦🇱 Albania • 🇦🇪 United Arab Emirates • 🇦🇷 Argentina • 🇦🇺 Australia • 🇧🇯 Benin • 🇧🇫 Burkina Faso • 🇧🇩 Bangladesh • 🇧🇬 Bulgaria • 🇧🇴 Bolivia • 🇧🇷 Brazil • 🇧🇼 Botswana • 🇨🇫 Central African Republic • 🇨🇱 Chile • 🇨🇳 China • 🇨🇮 Ivory Coast • 🇨🇴 Colombia • 🇰🇲 Comoros • 🇩🇯 Djibouti • 🇩🇰 Denmark • 🇩🇿 Algeria • 🇪🇨 Ecuador • 🇪🇬 Egypt • 🇫🇷 France • 🇬🇧 United Kingdom • 🇬🇳 Guinea • 🇬🇹 Guatemala • 🇭🇺 Hungary • 🇮🇩 Indonesia • 🇮🇸 Iceland • 🇮🇱 Israel • 🇰🇪 Kenya • 🇰🇭 Cambodia • 🇱🇸 Lesotho • 🇱🇹 Lithuania • 🇲🇦 Morocco • 🇲🇬 Madagascar • 🇲🇽 Mexico • 🇲🇱 Mali • 🇲🇼 Malawi • 🇲🇾 Malaysia • 🇳🇵 Nepal • 🇵🇰 Pakistan • 🇵🇪 Peru • 🇵🇾 Paraguay • 🇷🇺 Russia • 🇸🇦 Saudi Arabia • 🇹🇩 Chad • 🇹🇭 Thailand • 🇹🇳 Tunisia • 🇹🇷 Turkey • 🇺🇾 Uruguay • 🇺🇸 United States • 🇺🇿 Uzbekistan

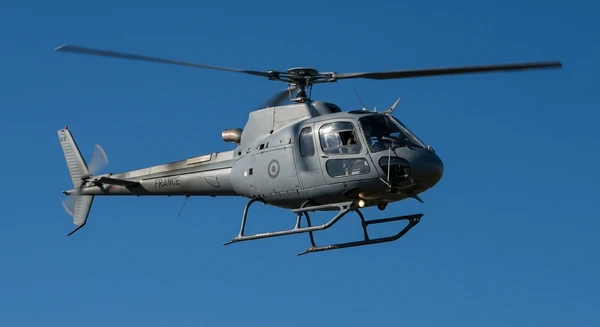

Photo of H125M / AS550 Fennec
Profile drawing of Aérospatiale H125M / AS550 Fennec

Description

The Eurocopter AS550 and AS555 Fennec are lightweight, multipurpose military helicopters developed by the Eurocopter Group, now known as Airbus Helicopters. These helicopters are based on the AS350 Ecureuil and AS355 Ecureuil 2 series. From 1990 onwards, military variants of the Écureuil were marketed under the Fennec designation as a result of the Vienna Treaty. The Fennec's design emphasizes a lightweight and compact structure, making it suitable for deployment on naval vessels such as destroyers or aircraft carriers, allowing for deployment from a variety of platforms.

The aircraft is available in single-engine and dual-engine variants to meet varied operational requirements. The single-engine variant is optimized for simplicity, reliability, and reduced maintenance, while the dual-engine variant offers increased power and redundancy. The armed versions of both variants are adaptable, able to be outfitted with coaxial weapons, rockets, torpedoes, and other munitions. Specifically, the AS555 AN Fennec 2 can be fitted with a 20 mm cannon, while the AS555 AR Fennec 2 is armed with cannon and rockets. The AS550 C2 and C3 are armed versions based on the AS350 B2 and AS350 B3, respectively, with the specifications for the AS550 C3 indicating a provision for armament.

The French Air Force received AS555 helicopters between February 1988 and March 1994, with 40 remaining operational as of 2018. The ALAT (French Army Light Aviation) received 17 AS555 Fennecs in January 1990, assigning them to the 6th Squadron of Utility Helicopters at the Le Luc Training School for training and liaison missions. The Royal Danish Air Force acquired twelve AS550 C2 helicopters in 1987, receiving the first deliveries in August 1990; geopolitical shifts led to their repurposing for observation and light transport. Three Danish Fennecs were deployed to Macedonia during Operation Amber Fox in 2002, and deployments to Iraq followed in 2005 and Afghanistan in 2008. The Argentine Navy acquired AS555 Fennec helicopters after the Falklands War due to restrictions on acquiring Westland Sea Lynx helicopters, with the first four AS555-SN units arriving in 1996. In 2011, a Royal Malaysian Navy Fennec helicopter supported the rescue of a hijacked chemical tanker from Somali pirates by providing reconnaissance and aerial gunfire.

Main Variants:

  • AS550 C2 Fennec – An armed version based on the AS350 B2.

  • AS550 U2 Fennec – An unarmed version based on the AS350 B2.

  • AS550 C3 Fennec – An armed version based on the AS350 B3.

  • AS555 AF Fennec 2 – An armed version based on the AS355 N.

  • AS555 AN Fennec 2 – An armed military version, which can be fitted with a 20 mm cannon.

  • AS555 AR Fennec 2 – An armed version fitted with cannon and rockets.

Frequently Asked Questions

What type of aircraft is the H125M / AS550 Fennec?
The Aérospatiale H125M / AS550 Fennec is a military helicopters aircraft developed by Aérospatiale and entered service in 1990.
What is the maximum speed of the H125M / AS550 Fennec?
The Aérospatiale H125M / AS550 Fennec has a maximum speed of 260 km/h (161 mph).
What is the range of the H125M / AS550 Fennec?
The Aérospatiale H125M / AS550 Fennec has an operational range of 720 km (447 miles). This range can vary based on payload, altitude, and mission profile.
When did the H125M / AS550 Fennec first fly?
The Aérospatiale H125M / AS550 Fennec made its first flight on June 27, 1974. It entered operational service in 1990.
How many H125M / AS550 Fennec have been built?
Approximately 531 units of the Aérospatiale H125M / AS550 Fennec have been produced since it entered service in 1990.
Which countries operate the H125M / AS550 Fennec?
The Aérospatiale H125M / AS550 Fennec is operated by 45 countries with approximately 543 aircraft in active service. The largest operators include Brazil, France, and Pakistan.
How much does a H125M / AS550 Fennec cost?
The Aérospatiale H125M / AS550 Fennec has an estimated unit cost of approximately $5.0 million. Actual prices vary based on configuration, quantity ordered, and included support packages.
What is the service ceiling of the H125M / AS550 Fennec?
The Aérospatiale H125M / AS550 Fennec has a service ceiling of 4,600 meters (15,091 feet). This is the maximum altitude at which the aircraft can maintain controlled flight.
